Pc1pc2

Card : Magnetic stripe card, ISO track II

Reader : Magnetic card reader, Reader track II

Type : Swipe and Surface mount

Operation modes: Card, card and / or keypad, keypad only, card and PIN in card, free access

Passcode: 5 groups of programable door codes variable from 1 to 8 digits

Monitor inputs: Door Contact, Exit push button, case tamper and safety zone sensor input

Dimension: 120(L) x 100(W) x 32 (H) mm

Weight:: 0.80 kgs + 5%



pc3

Card : Magnetic stripe card, ISO track II

Reader: Magnetic card reader, Reader track II

Type: Swipe and surface mount

Operation modes: Card, card and / or keypad, keypad only, card and PIN in card, free access

Passcode: 5 group of programmable door codes varable from 1 to 8 digits

Monitor inputs: Door contact, Exit push button, case temper and safety zone sensor input

Dimension: 156(L) x 123(W) x 42 (H)mm

Weight: 1kgs +5%



* With tamper switch and two loop sensor inputs to trigger alarm when case is tampered or loop is intruded

* DC 12V operated. Will switch over when AC power is intrrupted

* Allows basically 3,000 magnetic stripe cards or 5 group of programmable door codes variable from 1 to 8 digits
for access control and optionally for 7,000 and 9,999 cards (on special model) can be singly or blockly
added/deleted through keypad

* Programmable mode for ARM/DISARAM output.

* With CMOS CPU or low power consumption.

* Selectable encyperead acard format which cannot be easily duplicated by ISO Encoder.

* EEROM stores data base for 100 years.

*Intelligent functions programmable through keypad and with LED's indication.

* All programmings can be done by using the inherent reader and keypad as well as by PC or other Host computer in
On-lined mode.

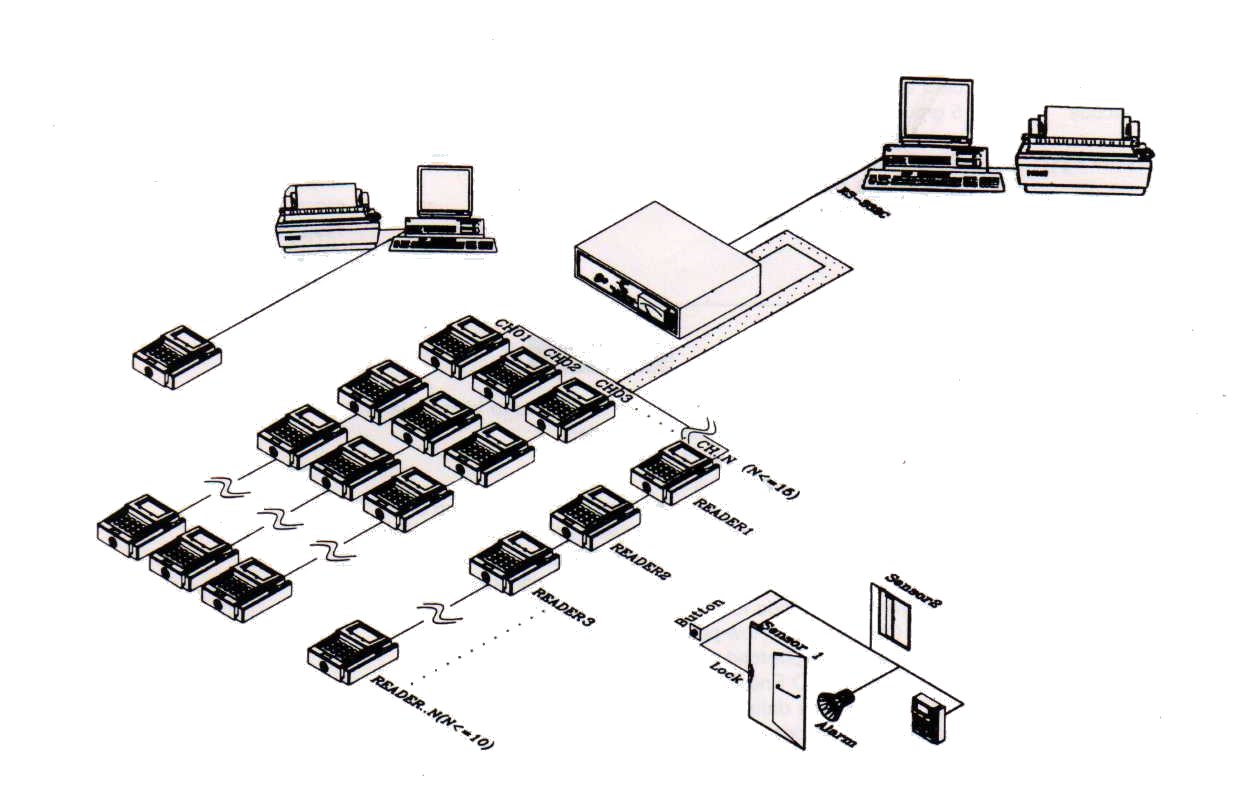

* For more advanced control, you may netting all or partial readers to the Host computer for more delicate control
such as time zone, holiday control and recording the access record by application software.

* Metal case and Keypad as well as case lock prevent vandalism



Total Access Control Solution

With Barcode, Proximity Access Card, Wilegand Technology.

For Automatic Teller Machines, Office, Home, Laboratory, Hospitals, Elevator Parking lot applications.

Multi-Channels communication multiplexing.

Magnetic stripe card Recorder/Writer.

Time Attendance recorder

Various kinds of electrical strikes for wodden, aluminium and glass, locks electrical dead bolt.
